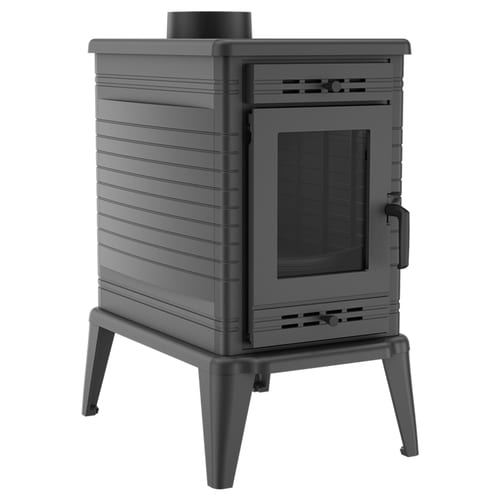

Wood burning cast iron stove KRATKI K10 Turbofan Ø 130 10 kW

MAXIMUM USE OF ENERGY

Maximum use of heat and trouble-free operation thanks to the walls of the device made of high-quality cast iron with a thickness of 8 mm.

Combustion of fuel particles thanks to the deflector, which extends the exhaust gas path.

Manual control of the combustion process through the ashpan.

Turbofan is a special device that efficiently distributes the heat generated by the device in the room where it works.



ECOLOGICAL COMBUSTION

The unit meets the requirements of Ecodesign standards.



SAFETY AT THE HIGHEST LEVEL

The Classic front of the insert is equipped with heat-resistant ceramics that can withstand temperatures up to 660°C.

Decorative fence helps to maintain tidiness and protects against falling out of wood.



CONVENIENT TO USE

The cold handle system allows for disassembly when the stove is in use.

Ash drawer/ashtray, where burnt wood remains are gathered and grated for easy ash removal.

Reduced soot deposition through a system of pure glass (air curtain).



TURBOFAN is available for purchase only with free-standing stove - K6, K7, K8, K9 and K10.

Turbofan is a device that efficiently distributes the heat produced by a free-standing stove throughout the room. It is an integral part of the stove, placed on the rear panel, which does not affect the aesthetic qualities of the device. Its operation is simple and is based on the increased airflow along the rear walls of the unit, receiving heat and transferring it to the room.

The system includes a built-in turbine attached to the cover, which is  at the same time a  passageway and the thermostat. The thermostat consists of a controller and a head forming a temperature sensor. The head heats up as the temperature rises at the back of the fireplace wall. After reaching a certain temperature, the sensor system automatically starts, and the turbine starts its work. The air is sucked in from the room through the two openings at the front and bottom of the turbine casing. Air flow removes the heat from the back of the fireplace wall and passes it to the room. Operating temperature from 50 to 300°C.

This type of solution significantly increases the comfort of using the stove because the user has the ability to decide at what temperature the back wall  system will be activated; this increases the efficiency of transmission of heat to the room.
