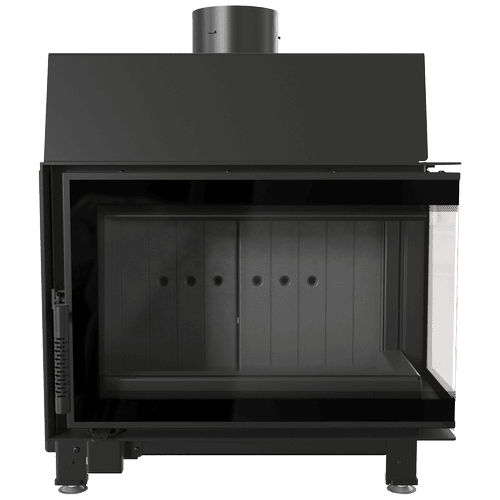

Steel fireplace KRATKI SIMPLE left 6 kW Ø 150

MAXIMISING ENERGY EFFICIENCY

Made of high grade steel body and front resistant to very high temperatures.

Efficient combustion and longer temperature maintenance thanks to lining the combustion chamber with TERMOTEC - a heat accumulating material that increases the temperature in the chamber.

The high flue and transverse flame tubes - increase the heat transfer surface between the insert and the environment. Lowering the temperature of the flue gas contributes to increasing the efficiency of the device.

Stable and stress-resistant fireplace door made of a closed profile. The door seal is located in a profiled duct, which guarantees its proper adhesion and prevents it from falling out during operation.

Fuel particles are burned thanks to the deflector, which prolongs the smoke path.

Air supply only from the outside thanks to the integrated connection. Air intake can be adjusted by means of a single regulator, which prevents misuse.

Triple air system for the combustion chamber: primary air - directed at the combustion plate; secondary air is supplied through holes in the rear wall. Additionally, a clean glass system (air curtain) is used in the cartridge.



SAFETY AT THE HIGHEST LEVEL

Excellent tightness thanks to solid welds made in a noble gas shielding.

Steel elements are laser cut out using modern equipment and then bent on CNC bending machines.

The front of the insert is equipped with heat-resistant ceramics withstanding temperatures up to 660°C.



ECOLOGICAL COMBUSTION

The device meets the Ecodesign and BImSchV 2 standard, which sets the maximum CO



CONVENIENT USE

Keeping the cartridge clean is made easier by the mounted grate and the container in which the ashes are collected.

Soot deposit is reduced thanks to the clean glass system (air handlebar).

The special perforated construction of the handle protects against excessive heat, which makes the fireplace more comfortable to use.



MODERN DESIGN

A fireplace stove with two panes at right angles to each other (panes joined together without a muntin bar).

The decorative glass pane with a temperature of up to 660°C, which gives the fireplace a modern and elegant appearance, optically enlarges the front of the insert.
